What is GPR Scanning?

Before starting a construction project, it's important to ascertain what is contained within the concrete structure to ensure critical items embedded within the concrete remain undisturbed.

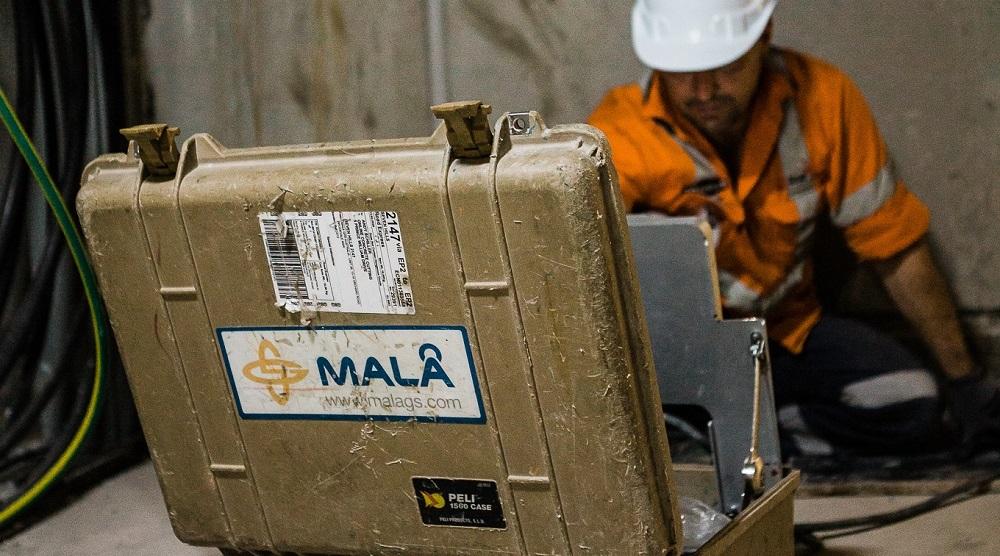

GPR Scanning also known as Ground Penetrating Radar, or slab scanning refers to the use of equipment that sends electromagnetic waves into the surface being scanned in order to identify variations within the materials which are then deciphered to determine what they represent.

The data can be collected in simple line scans to determine the thickness of concrete or in a grid format which will produce a map of any targets located in the concrete.

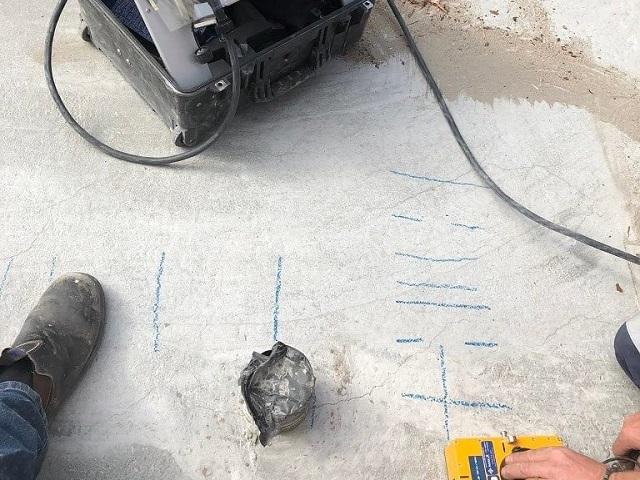

The results are recorded on the surface as well as being able to be used to generate a detailed report for further analysis and assessment. Decisions are then made to determine where penetration are able to be made safely.

The portability of modern GPR scanning equipment allows for a large amount of data to be recorded in a short period of time thereby producing enormous savings in construction, engineering, and maintenance costs by preventing the unwanted or unexpected disturbance or damage to identified items embedded within the scanned surface.

Occs Gpr Scanning 2

Concrete GPR Scanning Applications

  • Determine location of rebar (reinforcement bars), steel beams, post tension cables
  • Assist to verify slab thickness
  • Assist in achieving a safe work area for sawing / drilling to commence
  • Detailed reports relating to findings are also available on request
  • Electrical conduits
  • Voids within concrete
  • Fibre optic cables

Benefits Associated with GPR Scanning

Concrete GPR scanning represents a real-time non-destructive testing technique that allows for the rapid location of services and other items embedded in the surface being scanned. Items that are able to be located include post tension cables, rebar, electrical conduits, and other voids.

Knowing the location of these items prior to disturbance by way of concrete sawing and drilling or other methods avoids costly repairs as well as eliminating the dangers associated with striking a live service.

GPR Concrete scanning performed prior to penetrating the surface reduces the chance for expensive downtime or setbacks due to structure damage or damage to services.

The portability and ease of operation allows the operator to move easily about the job site and record a large amount of data in a short period of time.

With limited downtime, ability to avoid structure or utility damage, or possible injury, GPR is a cost-effective solution for identifying subsurface objects and potential problem areas. Not to mention the fact that jobsite doesn't have to be fully cleared to gain access and that a large area can be inspected and scanned each day.

Occs Gpr Scanning 2
Occs Gpr Scanning 3

Service Locating

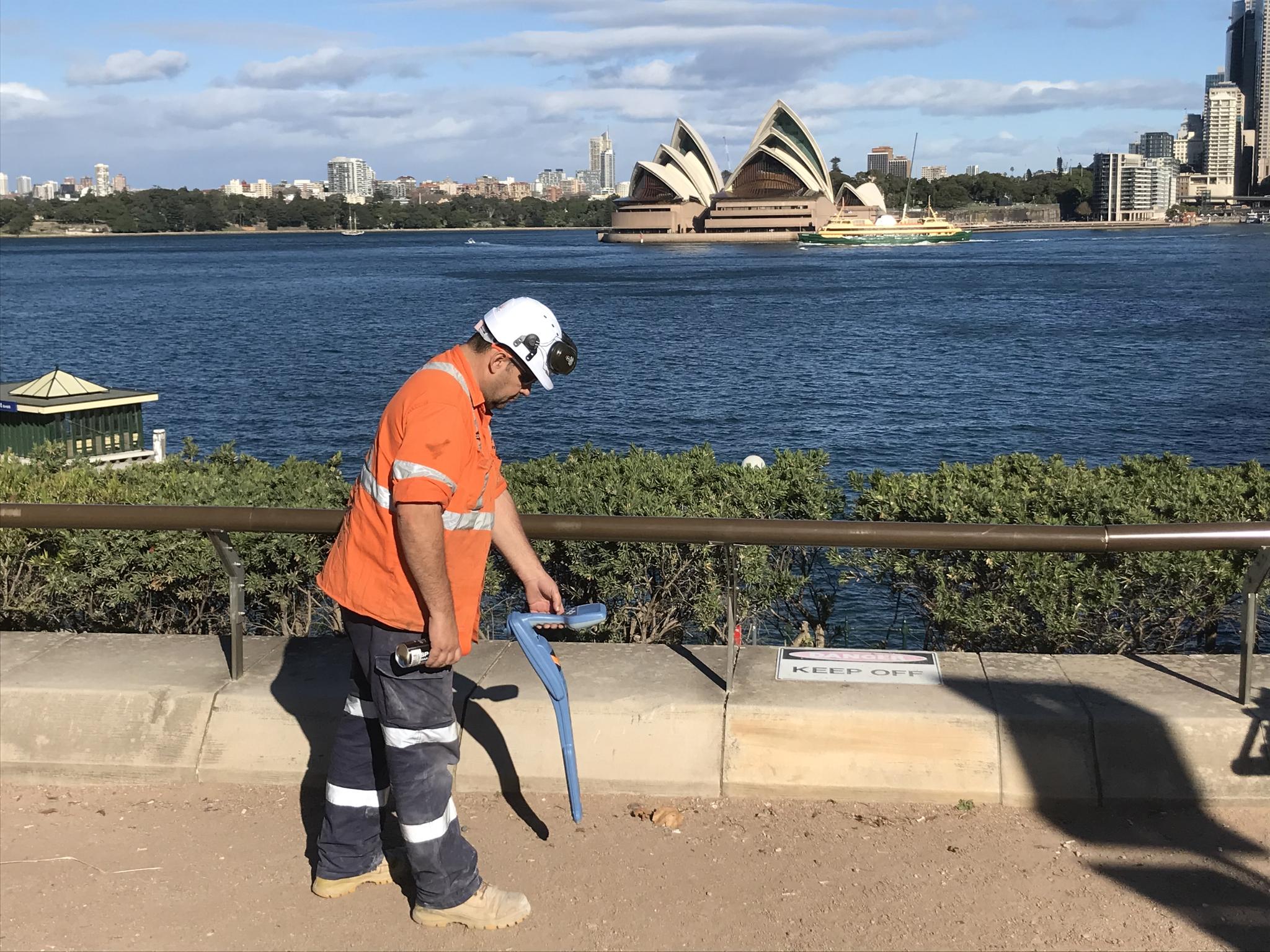

Utility Locating with Ground Penetrating Radar

Utility locating / scanning is a two-step process, employing both Radio Detection and GPR. Our goal is to identify the type and location of these utilities in order to prevent damage to them and the surrounding environment as well as protect your workers on the job site. To provide the most comprehensive picture of existing utility lines at your job site, our ground-based services should be used in conjunction with your state's one-call utility detection agency as well as any other utility data in your possession.

Service Locating - Electrical Services embedded within concrete surface

Knowing the location of electrical conduits is essential for preventing safety risks, power outages, and expensive damages. Scanning for services using a service locator prior to penetrating the surface via either concrete cutting or drilling allows clients to avoid live conduits and to penetrate safely into concrete surface.

Frequently Asked Questions (FAQ)

Steel such as post tension cables, reinforcement bards, mesh along with voids, underground utilities (metal or plastic), conduits, or various other items are such items that will present as different information as the GPR transmits and receives a high-frequency electromagnetic impulse with differing travel time and amplitude. This information is displayed on the GPR screen for interpretation by the technician.

Subsurface imaging and utility location services

When finding utilities on a job site, we use a combination of methods that allow us to be extremely accurate in finding underground utilities. A DIRECT CONNECT method involves our technician directly connecting a transmitter to a hard line. The line sends a direct signal to the technicician wherever he or she may be on the job site. A SONDE method is when we induce a locatable line into the utility, we then proceed to find the path of the line above the surface. A PASSIVE method is used to find live power transmitted by a buried electrical utility.

Private Utility Locating can assist to locate:

  • Telecommunication lines
  • Electric cables and conduits
  • Underground Pipes
  • Water Lines
